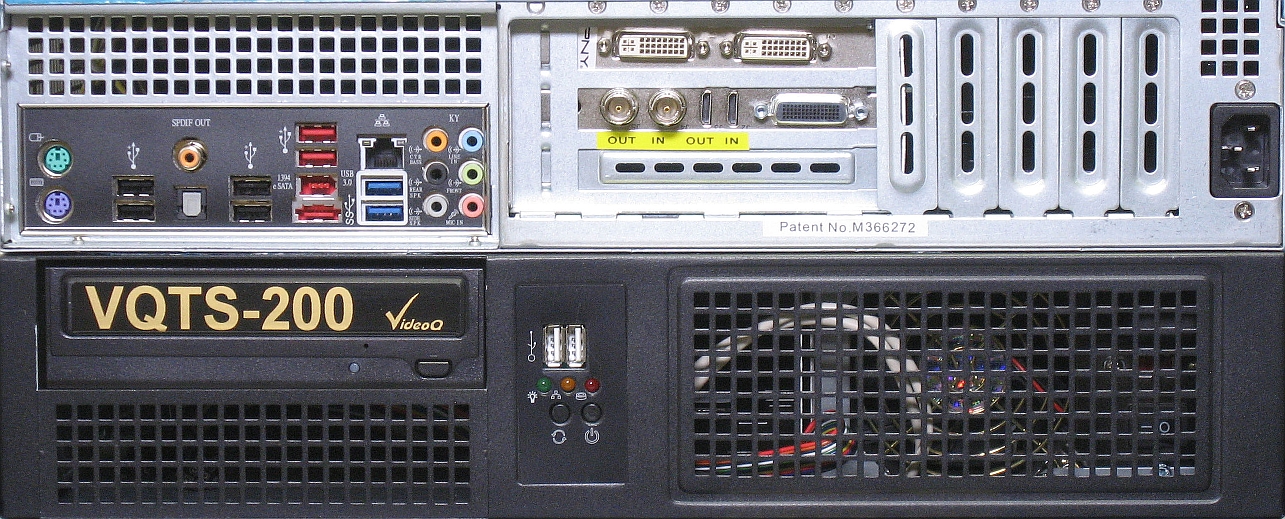

VQTS-200
3G / HD-SDI / SDI / HDMI Video Generator-Analyzer

Industrial PC with 3G-SDI/HDMI Interfaces, VideoQ Test Patterns and VQMA3 Analyzer & Scope

VQTS-200 Datasheet

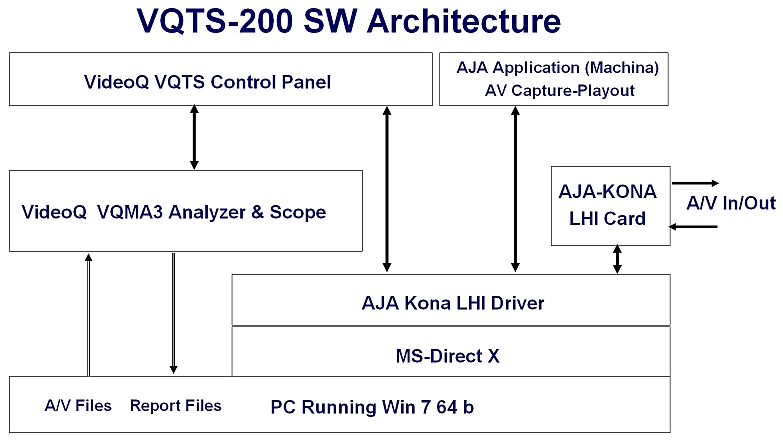

• VQTS-200 is a self-contained solution, combining:
  • 3G-SDI/HDMI/DVI player/recorder - based on AJA Kona LHi card
  • Built-in RAID storage - uncompressed YUV signals in and out, up to 1080p60

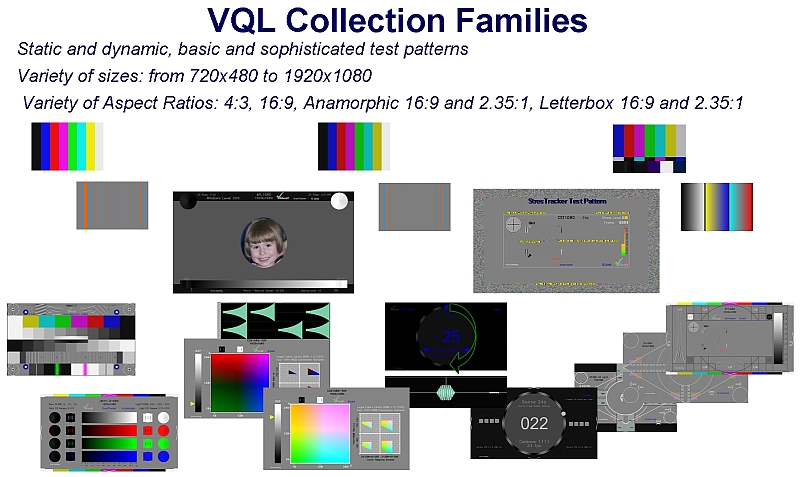

  • Visual, instrumental and automated tests using VQL Test Patterns Library
  • Sophisticated image quality VQMA3 software analyzer - complete quality report in 2 seconds
• Ideal tool for development labs, software developers and high volume manufacturers
• Easy-to-use tool, instantly revealing your video camera, codec, scaler, converter or other video device performance

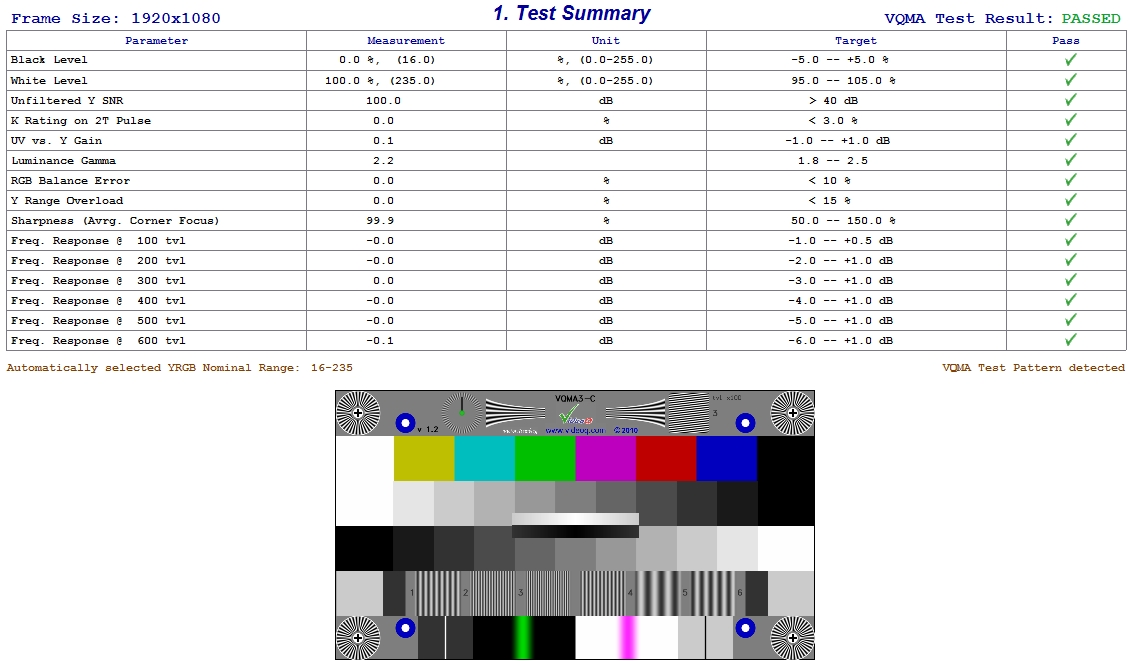

• User-selectable reporting modes:

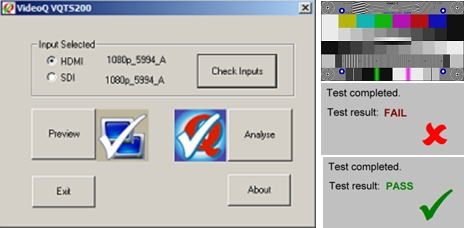

  • machine-readable file with Pass/Fail marks
  • detailed multi-page PDF document

VQTS200 Training Presentation

VQMA3 - Video Analyzer and Scope

========= Target Applications =========

• Engineering & Development of video systems and devices
• QA/QC of broadcast, prosumer and consumer video systems with HDMI and/or SDI connectivity
• Teleconference systems installation & calibration
• CDN and IPTV systems QA/QC

========= Player/Recorder Features =========

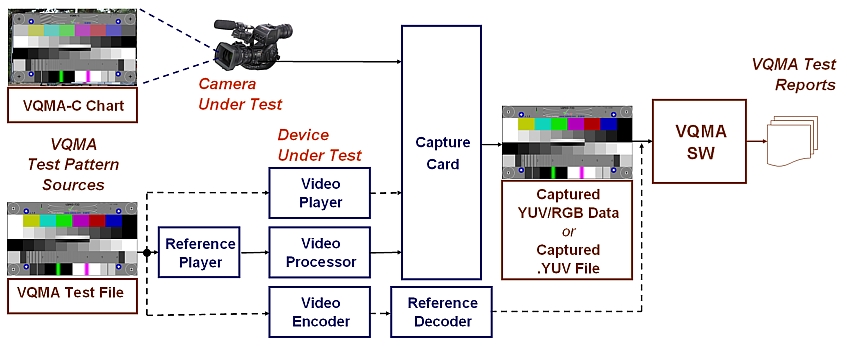

• Fast and effective tool for 3G-SDI/HD-SDI/SDI/HDMI equipment testing and video data fidelity verification
• Playout, live preview and multi-frame capture of video and audio data in a variety of formats
• Output and capture original uncompressed video material data – bit by bit, pixel by pixel, frame by frame
• 3G-SDI, HDMI 1.3 and DVI 1.0 compliance

=========== VQMA3 Features =========

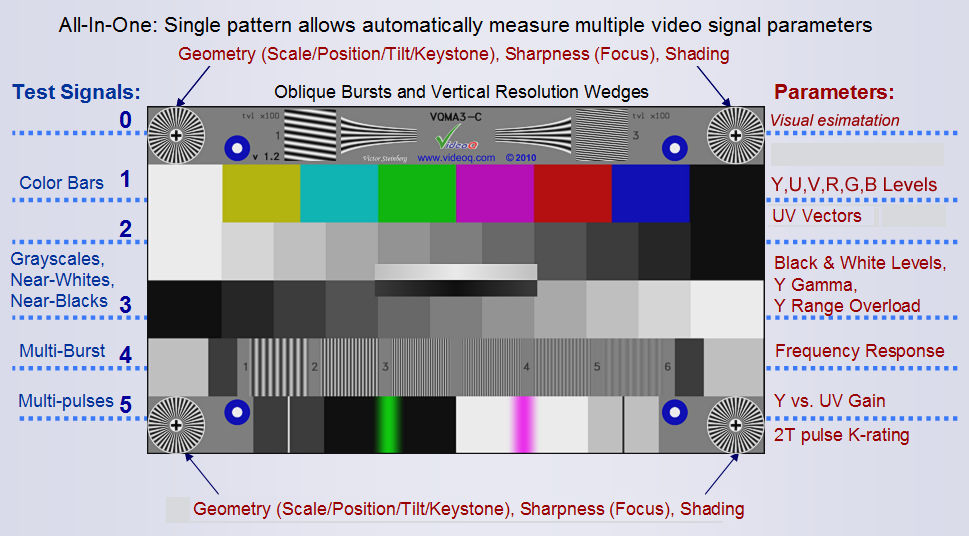

• Auto-analysis on the companion VQMA3 Matrix Test Pattern

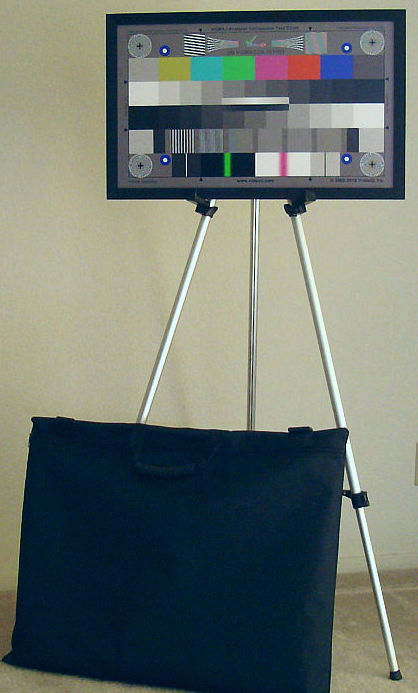

• Versatile VQMA3 Test Pattern formats: Optical Chart, File, Test Signal, Test Stream
• Resolutions supported
  • YUV: 1280x720 and 1920x1080
  • BMP: any size from 640x480 to 1920x1200
• Built-in Software Scope: YUV/RGB waveform monitor
• VQMA3 Analyzed Parameters:
  • Geometry: Scaling, Position, Tilt, Keystone
  • Levels: Black, White, Color Balance, Gamma
  • H & V Shading (Levels Spatial Uniformity)
  • Frequency Response: in dBs vs. scalable tvl
  • UV vs. Y Gain (Color Saturation)
  • K-rating on needle pulse
  • Noise Analysis: Noise image display, Y,U,V,R,G,B SNRs, Y spectral density, Y,R,G,B Histograms
